8.8inch Android Bar Display: High-Definition Smart Signage with USB Ad Screen

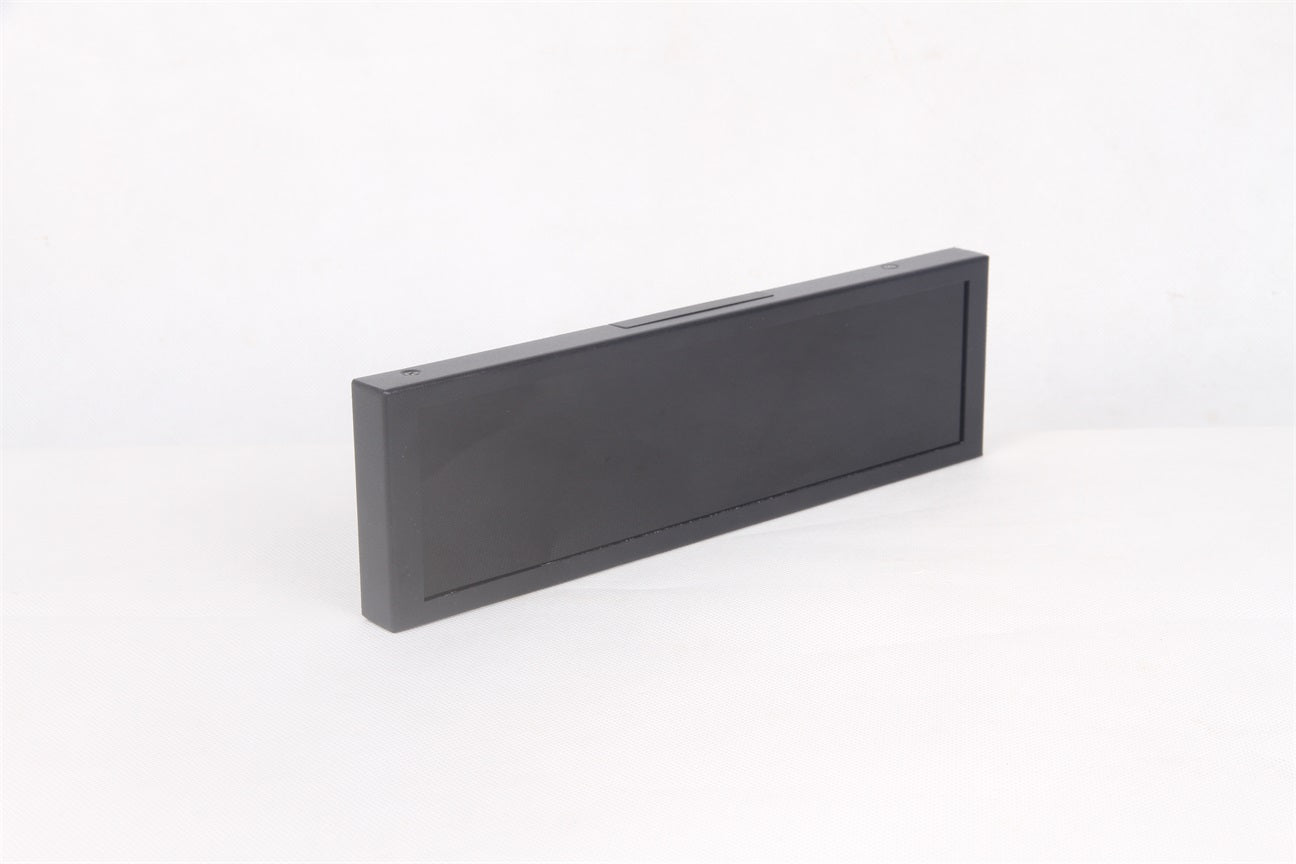

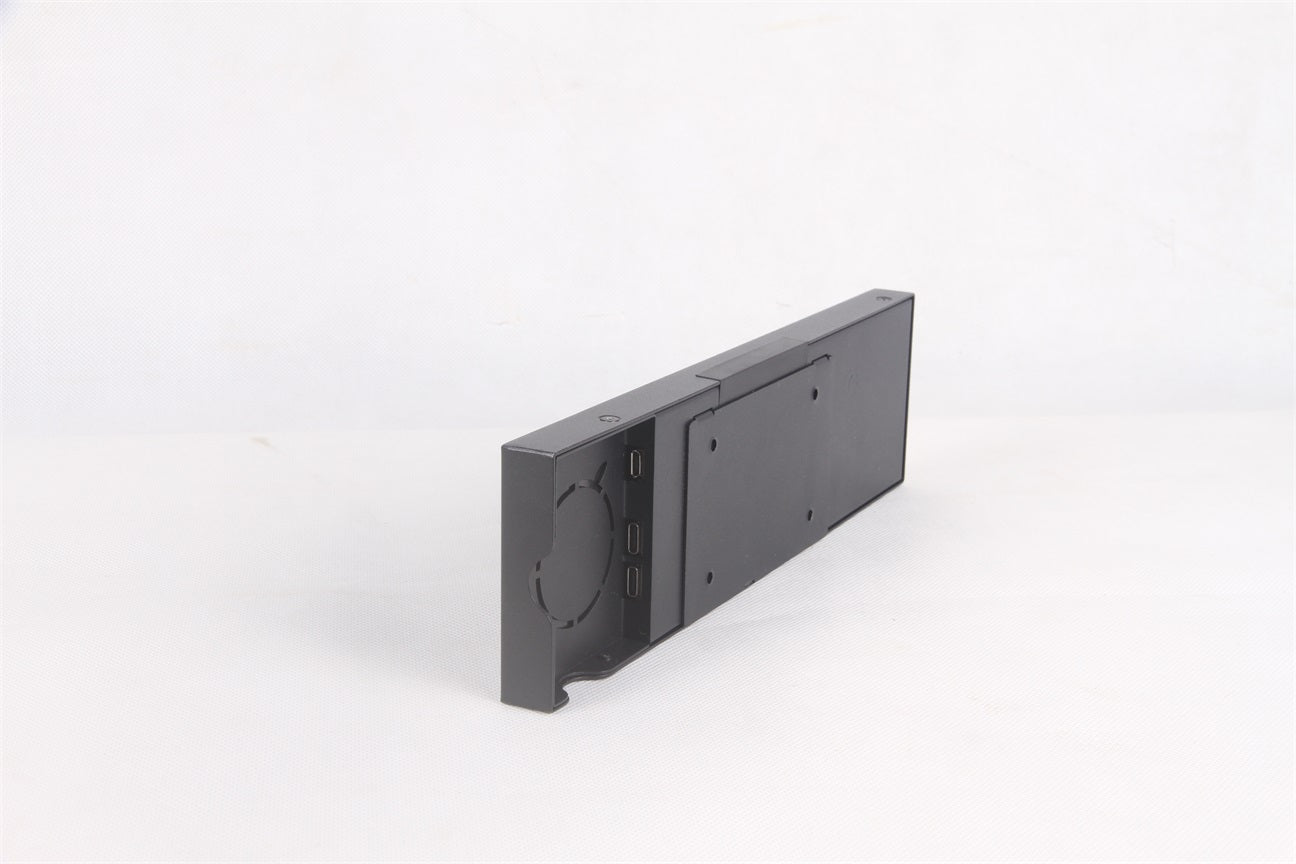

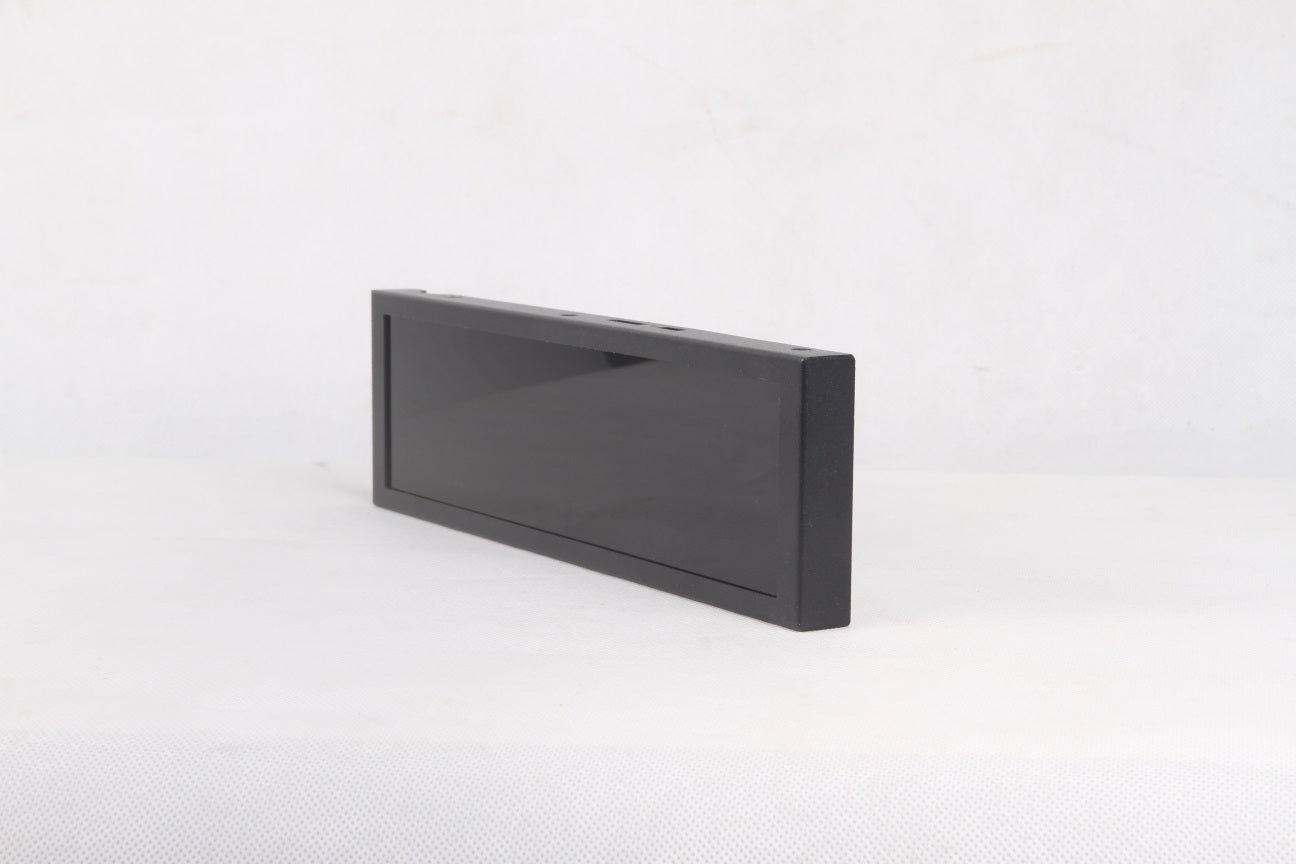

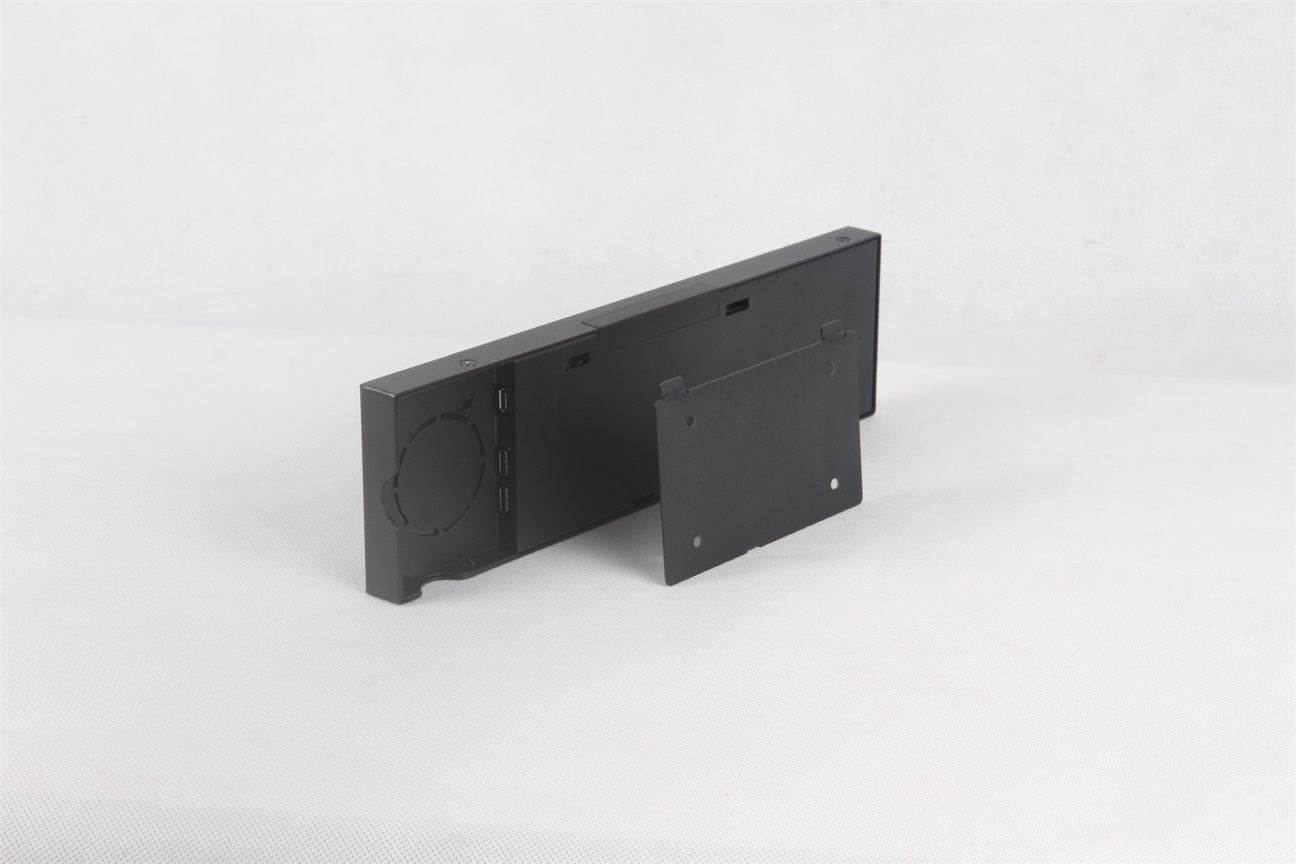

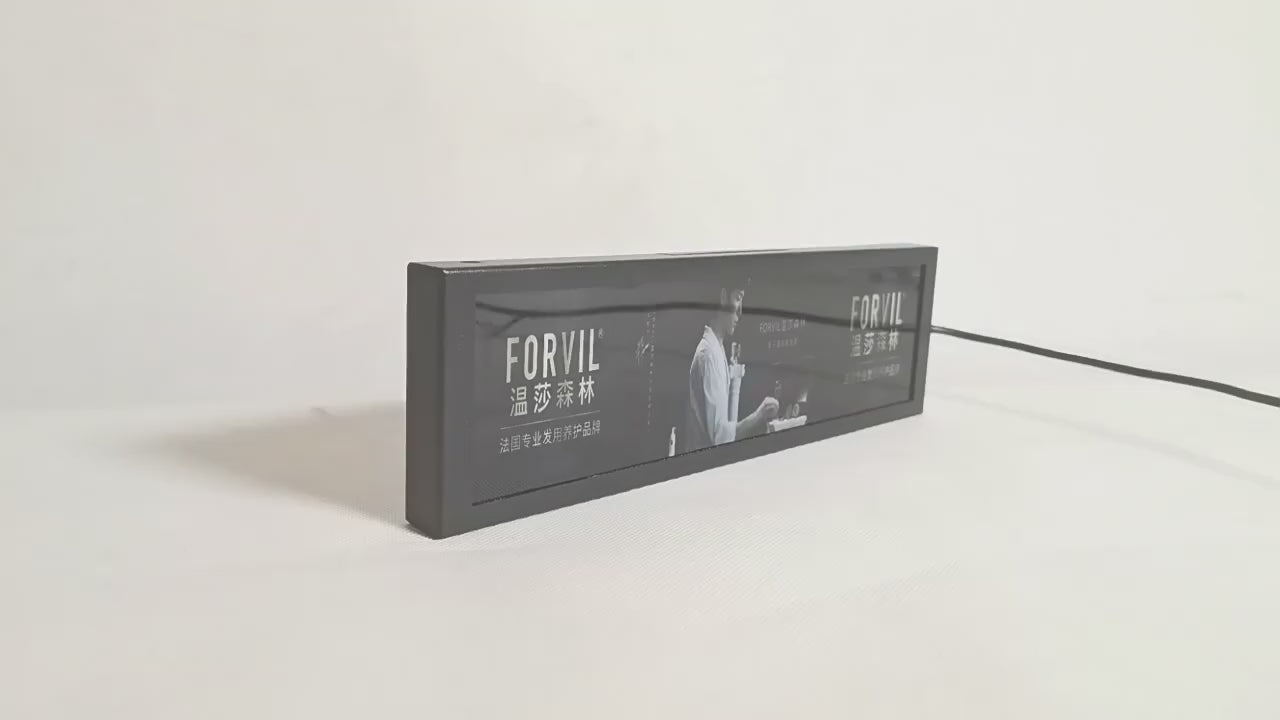

BR09XCB-N Advertising Screen Overview
The BR09XCB-N is an 8.8-inch advertising screen with a high-brightness TFT panel, 1920x480 resolution, and WLED backlight. It offers wide viewing angles, a 30,000-hour lifespan, and supports 2.4G wireless networks and Bluetooth V4.0. The device runs on a Rockchip PX30 quad-core processor with 1GB RAM and 8GB storage expandable to 64GB. It consumes less than 10W and operates on DC 12V. The dimensions are 240.6mm x 69.6mm x 16mm, weighing 0.5kg. It's certified by CE and FCC, and comes with a one-year warranty. Optional features include multi-format playback, template management, remote updates, permission assignments, real-time monitoring, and log export.
Applicable Scenarios:
- Retail stores for product promotions
- Restaurants for menu displays
- Public transportation hubs for wayfinding and advertisements
- Office lobbies for company announcements
- Educational institutions for campus news and event updates
- Hotels for guest information and services promotion
Product Parameter(Model: BR09XCB-N)
| TFT Screen | Size | 8.8" |
| Display area | 218.88(H)X54.72(V)mm | |
| Resolution | 1920(V)x480(H) | |
| Brightness | 600 cd/㎡ | |
| Backlight source | WLED | |
| Lifespan | 30000 hours | |
| Viewable angle | 85/85/85/85 (Typ.)(CR≥10) | |
| Contrast ratio | 800:1 | |
| Frame rate | 60 Hz | |
| Color depth | 16.7M , 50% NTSC | |
| Response time | 30 (Typ.)(Tr+Td) ms | |
| System | Processor | Rockchip PX30 Quad core ARM Cotex-A35 |
| Memory | 1GB DDR3 | |
| Built-in storage | 8GB | |
| External storage | Max supports 64GB TF card | |
| Network/BT | Supports 2.4G wireless network WiFi, Bluetooth V4.0 connectivity | |
| Interface | 2 micro USB (OTG), 1 TF card, 2 Type-c (DC 12V power supply) | |
| Operating System | Android 8.1 | |
| Power supply | Power | ≤10W |
| Voltage | DC 12V | |
| Whole machine and packaging | Size | 240.6mm x 69.6mm x 16mm |
| Net weight | 0.5 kg | |
| Package size (4 units/case) | 310mm x 270mm x 150mm | |
| Gross weight | 2.8 kg | |
| Environment | Working environment | Temperature: -20°C~70°C Humidity: 10%~85% Pressure: 86kPa~104kPa |
| Storage environment | Temperature: -30°C~80°C Humidity: 5%~95% Pressure: 86kPa~104kPa | |
| Certification | CE, FCC certification | Available |
| Accessories | Warranty | 1 year |
| Accessories | Adapters, wall mounting plate | |
| Other options | OTG cable | |
| Optional | information release system | Multiple Format Playback: Displays images, text, videos, web pages, and more. |
| Multi-Zone Visual Editing: Supports template management for flexible content layout. | ||
| Distributed Remote Management: Enables remote updates and scheduled power on/off. | ||
| Multi-Account Management: Allows for the assignment of over 50 types of permissions. | ||
| System Monitoring: Provides real-time status updates and terminal log queries. | ||
| Log Statistics and Export: Terminal logs can be queried and exported to Excel documents. |
Featured collection
Product description display
BOE offers premium display solutions, including bar-shaped, high-brightness, embedded, square displays, and commercial products to fulfill diverse needs. BOE is your all-in-one solution for indoor and outdoor displays.
Product feature introduction
UHD
Ultra HD display
Feature name
Simultaneous multiple display with composite playback function
You can create composite content consisting of videos plus multiple static images or dynamic images using pre-installed software.
FAQ
Questions about TFT LCD screens
Are your TFT LCD Displays compliant with RoHS and Reach standards?
Yes, the TFT LCD Displays are compliant with both RoHS and Reach standards.
Can the longevity of the TFT LCD Displays be assured?
- Yes, our TFT LCD Displays are designed and tested for longevity, providing reliable performance over a long period.
What technical support do you provide after purchase?
- After the purchase, our technical team offers continuous support to troubleshoot any issues and ensure optimal performance of our TFT LCD Displays.
Can I return or exchange a TFT LCD Display if it is defective or doesn't meet my needs?
- Absolutely! We have a customer-friendly return and exchange policy in place for defective products or those that do not meet your expectations.
How can I get in touch with your support team if I face any issues with the TFT LCD Display?
- Our support team is available round-the-clock. You can contact us via email, phone, or fill out the support form on our website. We aim to respond to all inquiries within 24 hours.
