10.1" Touch Display with IPS Technology and Enhanced Capabilities
BR10Y1W-T Advertising Screen Overview

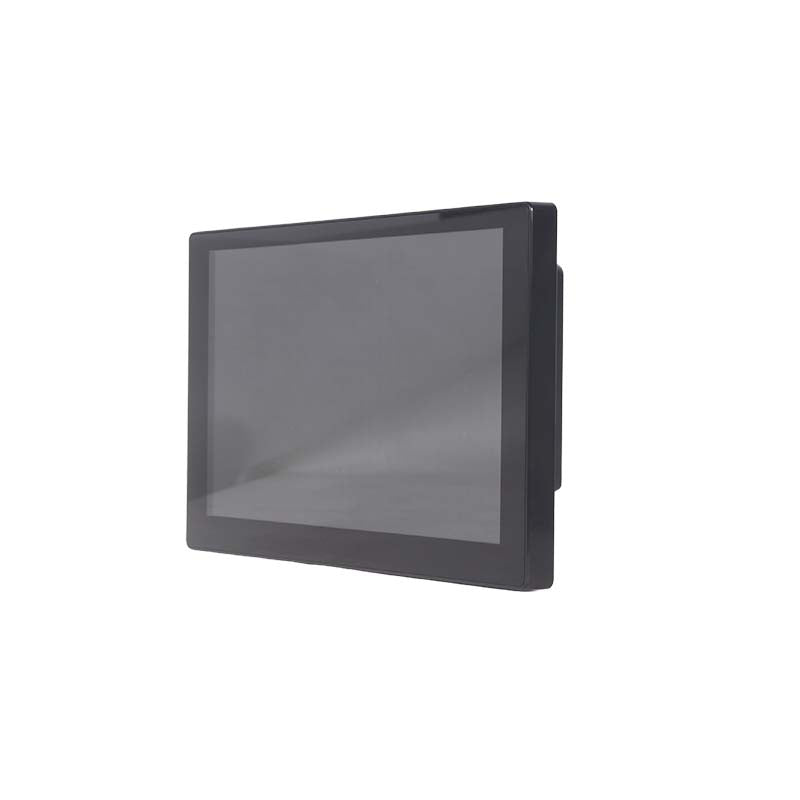

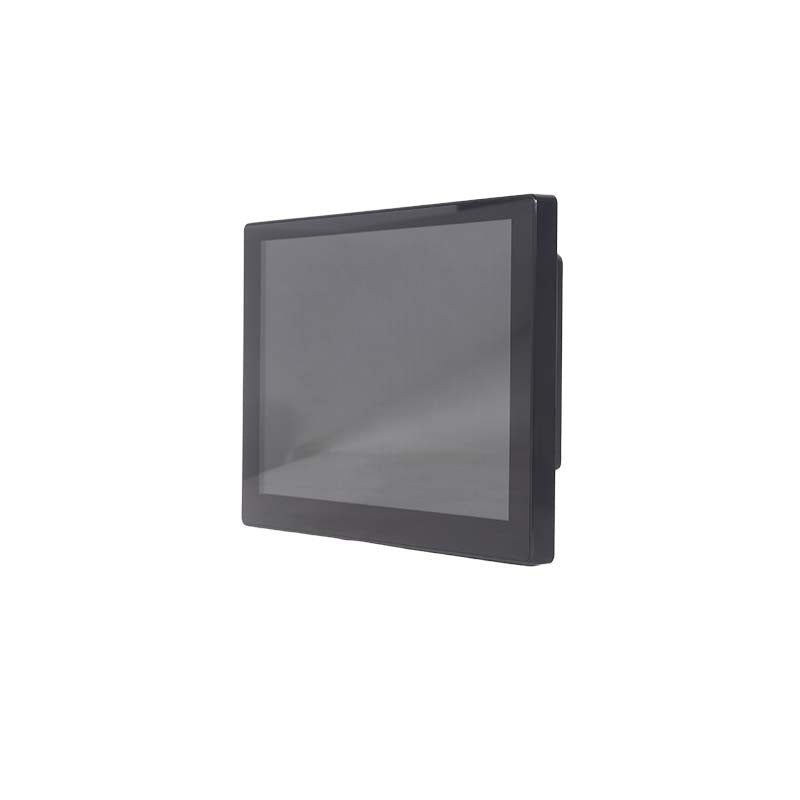

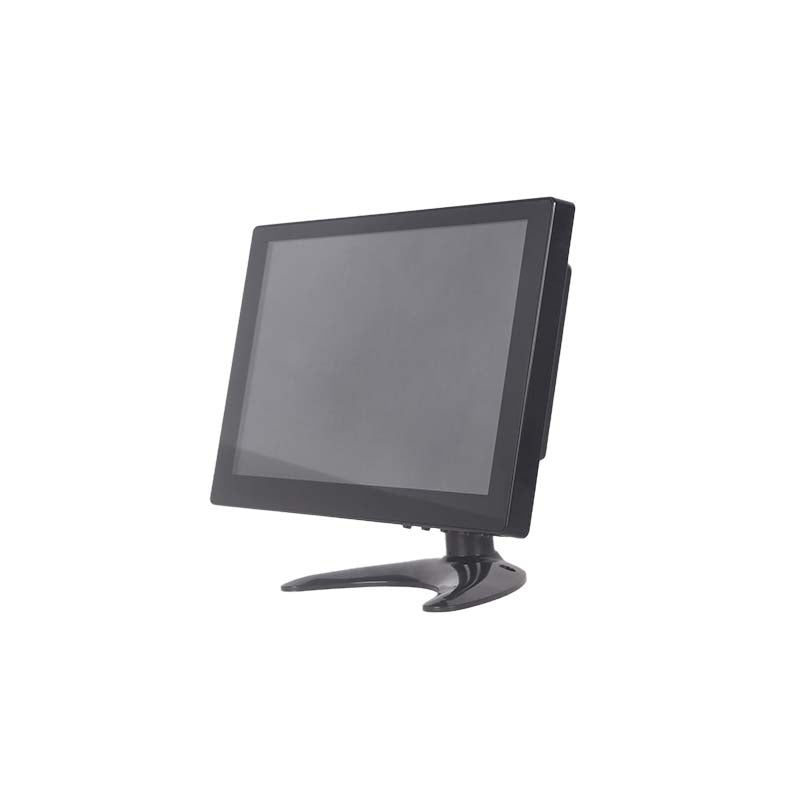

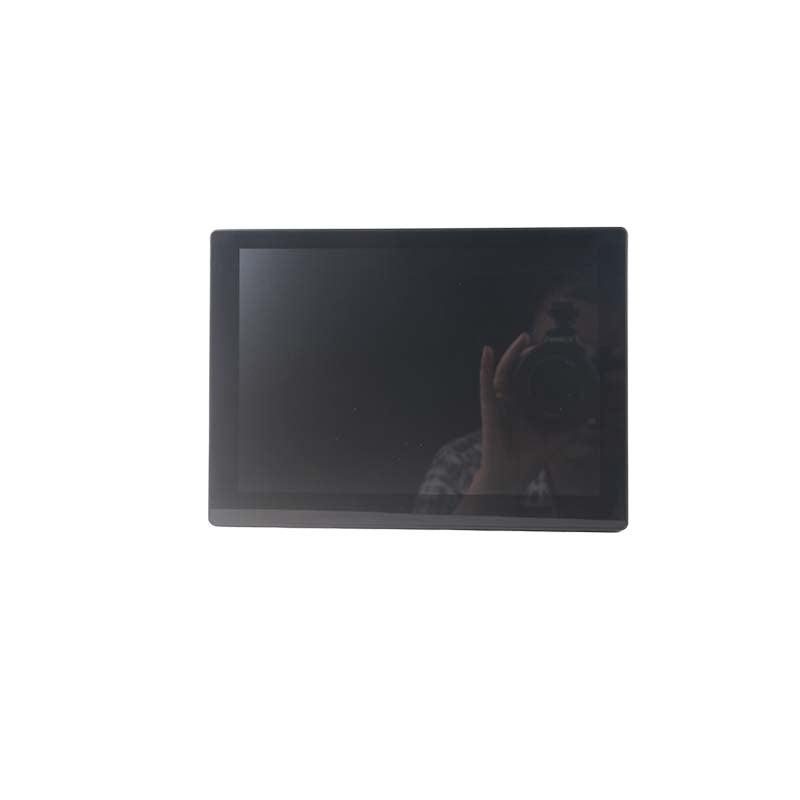

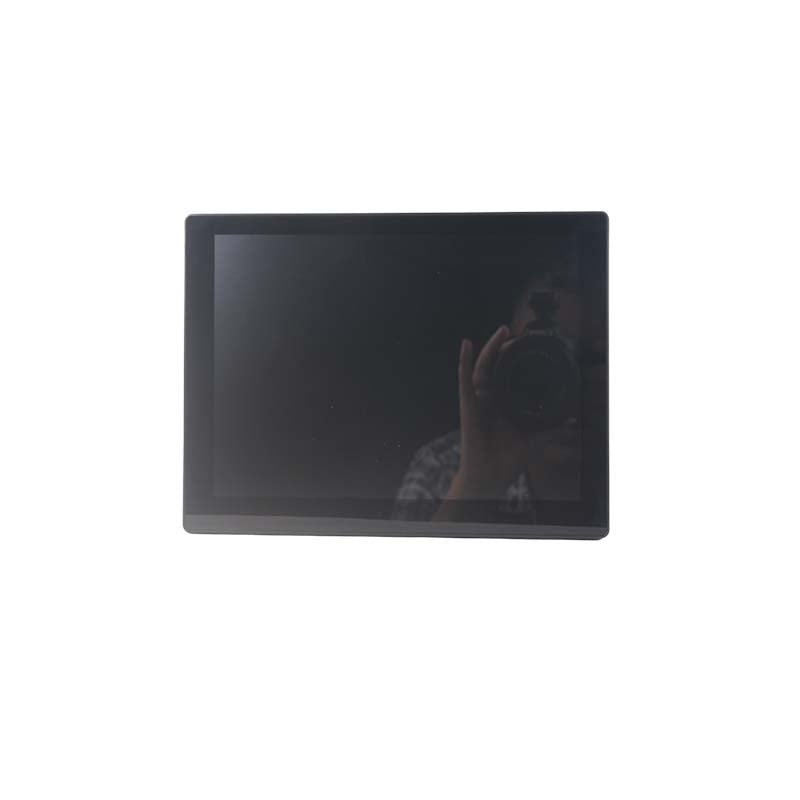

The BR10Y1W-T is a 10.1" WLED edge type display with IPS technology, offering a 16:10 aspect ratio and 16.7 million colors. It supports a maximum resolution of 1280*800 and has a refresh rate of 60Hz. The viewing angles are 85°/85°/85°/85° (typical), with a brightness of 400 cd/m² and a contrast ratio of 600:1. The touch option features a capacitive touch screen with a response time of less than 3 ms, surface hardness of ≥6H, transmittance of ≥85%, service life of over 5 million times, linearity error ≤2.5mm, and haze ≤3% (max).
Its specifications include dimensions of 25316635mm, net weight of 1 kg, and gross weight of 1.3 kg. The wall mounting holes are spaced 75*75mm apart. The input interface includes 1 VGA, 1 HDMI, and 1 USB port. The packing list contains 1 monitor, 1 HDMI cable, 1 user manual, 1 touch USB cable, and 1 12V-2A adapter.
Power consumption is 12W, with a standby power of <0.5W. The operating voltage is 100V-240VAC, 60/50Hz. The storage environment requirements are temperatures ranging from -20°C to 60°C, humidity levels of 5% to 95%, and atmospheric pressure of 86kPa to 104kPa. The working environment should have temperatures between 0°C to 50°C, humidity levels of 10% to 85%, and atmospheric pressure of 86KPa to 104KPa.
The BR10Y1W-T is a professional-grade display solution designed for versatile use cases, delivering exceptional performance and ease of operation.
Product Parameter(Model:BR10Y1W-T)
| Model | BR10Y1W-T | |
| Display | Panel size | 10.1" |
| Backlight Type | WLED edge Type | |
| Display | IPS | |
| Aspect ratio | 16:10 | |
| Display color | 16.7M | |
| MAX.resolution | 1280*800 | |
| Refresh rate | 60Hz | |
| Viewing angle（L/R/U/D） | 85°/85°/85°/85°(Typ.) | |
| brightness | 400cd/m² | |
| contras | 6OO:1 | |
| Response time | 6.5ms | |
| Touch(Optional) | Touch style | Capacitive touch（G+G） |
| Suppoor point | 10-point finger touch | |
| Touch method | Finger touch | |
| Surface hardness | ≥6H | |
| Response time | <3ms | |
| Transmittance | ≥85% | |
| Service life | >5 million times | |
| Linearity error | ≤2.5mm | |
| Haze | 3%(Max) | |
| Specifications | uppacking dimension | 253*166*35mm |
| Net Weight | 1kg | |
| Gross Weight | 1.3kg | |

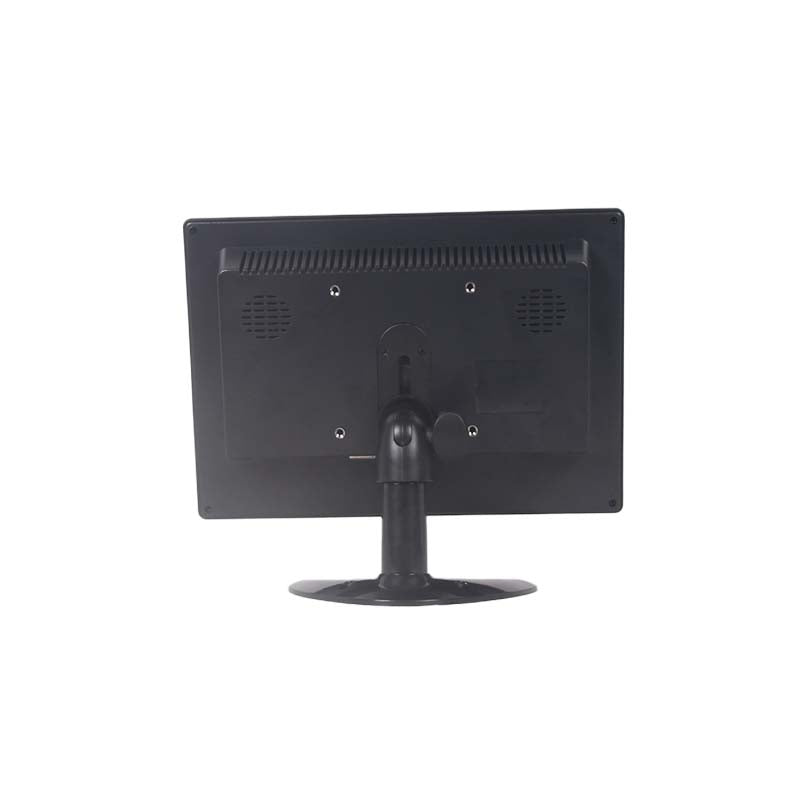

| Wall | 75*75mm | |

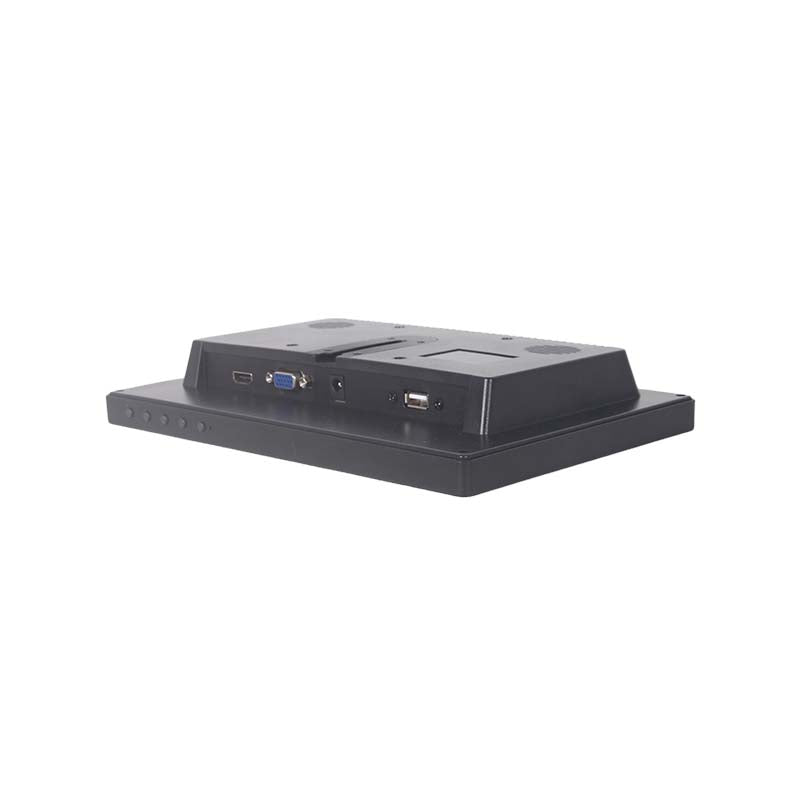

| Input interface | VGA | 1 |
| HDMI | 1 | |
| USB(touch) | 1 | |
| Packing list | Monitor | 1 PSC |
| Cable | 1 PSC （HDMI Cable) | |
| User manual | 1 PSC | |
| Touch USB cable | 1Pcs | |
| Adapter | 12V-2A | |
|
Power waste |
Power consumption | 12W |
| Standby power | <0.5W | |
| Operating voltage | 100V-240VAC 60/50Hz | |
| Environmental | Storage Environment | Temperature：-20℃～60℃ Humidity：5%～95% Atmospheric Pressure：86kPa～104kPa |
| Working Environment | Temperature：0℃～50℃ Humidity：10%～85% Atmospheric Pressure：86KPa～104KPa | |
