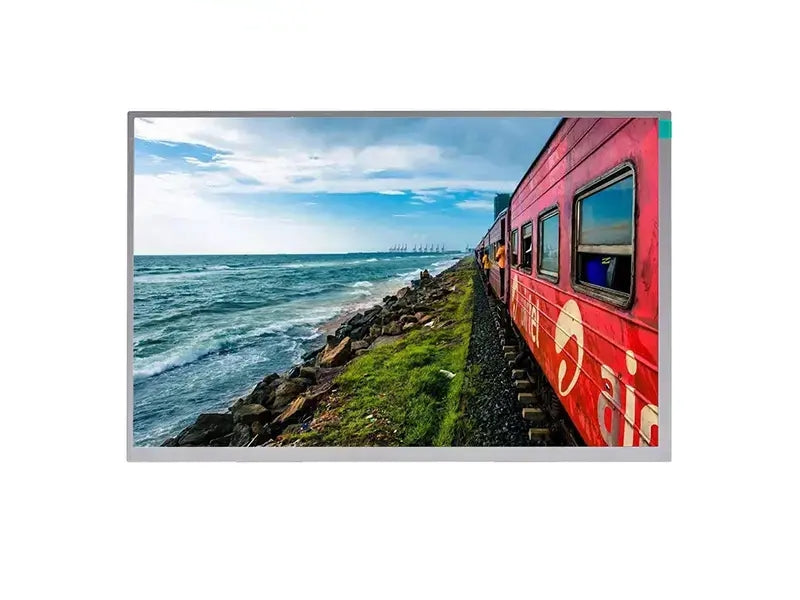

8.0 inch Standard 800x480px TFT without Touchscreen
Model: BR080WSE3064-A4 V.1
Size/Resolution: 8.0" Diagonal | 800x480 Pixels
Display Type: Standard
Touchscreen: None
Interface: RGB
Resource download: specification
BR080WSE3064-A4 V.1 Introduction

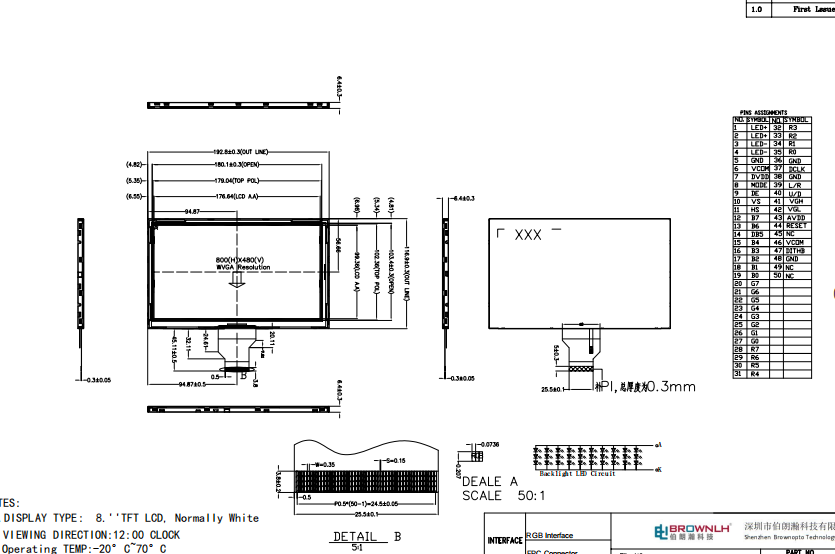

Correlation Parameter
| Item | Contents | Unit |
| LCD TYPE | TFT/TRANSMISSIVE | |
| MODULE SIZE (W*H*T) | 192.80*116.90*6.40 | MM |
| ACTIVE SIZE (W*H) | 176.64*99.36 | MM |
| PIXEL PITCH (W*H) | 0.2208*0.2070 | MM |
| NUMBER OF DOTS | 800*480 | |
| DIVER IC | NT52001+NT39419B | |
| INTERFACE TYPE | 24-BIT RGB | |
| TOP POLARIZER TYPE | ANTI-GLARE | |
| RECOMMEND VIEWING DIRECTION | 12 | O’CLOCK |
| GRAY SCALE INVERSION DIRECTION | 6 | O’CLOCK |
| COLORS | 16.7M | |
| BACKLIGHT TYPE | 30-LED WHITE | |
| TOUCH PANEL TYPE | WITHOUT |
Featured collection
TFT Custom Solutions
Our company offers custom-made TFT solutions, tailored to your unique display needs, ensuring high-quality, precision, and satisfaction.
Touchscreen Enhancement
Boost your device’s interactivity with our advanced touchscreen technology. We tailor the panel shape and glass thickness to your requirements, enhancing your product’s user experience.
Custom Cable Design
Steady and efficient hardware connections play a vital role in guaranteeing optimal display performance. Our bespoke cabling solutions ensure consistently stable and efficient connectivity, supporting your display unit’s essential operations.
Interface Customization
Enhance the performance of your devices with our tailored display interface solutions. We provide a variety of commonly used interfaces, including MIPI, TTL/RGB, MCU, LVDS, EDP, and SPI. We tailor these interfaces to align with your specific device requirements, ensuring optimized performance and efficiency.
Cover Glass Customization
High-quality cover glass serves to protect your display and enhance the stability and durability of your device. Selecting the appropriate glass thickness and conducting optical bonding further elevates the display quality. Our customized glass solutions ensure that your device not only looks good, but also stood the test of time.
Software/Firmware Customization
Enhance display performance with our customized software and firmware. We tailor the user interface to your device’s needs, maximizing user experience and operational efficiency.
INTELLIGENT CONTROL BOARD
Utilizes high-performance processors and advanced algorithms to achieve fast response and high-efficiency data processing capabilities. Supports various communication protocols to ensure seamless connection with external devices.
