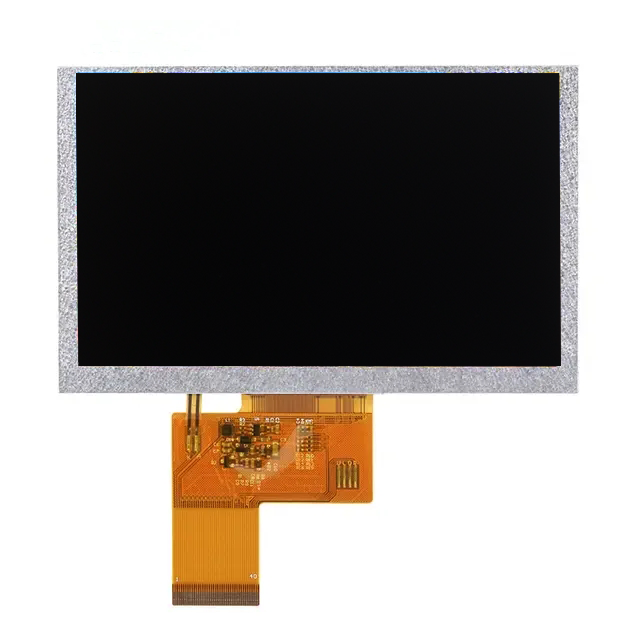

5.0 inch IPS 800x480px TFT without Touchscreen
Model: BR050WBI1230-B4 V.2
Size/Resolution: 5.0" Diagonal | 800x480 Pixels
Display Type: IPS
Touchscreen: None
Interface: RGB
Resource download: Specification
BR050WBI1230-B4 V.2 Introduction
This 5.0-inch LCD screen is crafted using a-Si TFT drive elements, delivering a superior resolution of 800x3 (RGB) x 480. It features an anti-glare treatment and an RGB stripe color layout that yield robust image quality, bolstered by high-definition detail and increased brightness. Alongside this, a digital interface ensures precise data transmission, striking an excellent balance between outstanding display effects and practical usability. With this combined set of features, this 5.0-inch LCD screen promises a high-definition viewing experience paired seamlessly with user-friendly design and functionality.
Correlation Parameter
| Feature | Spec | |
| Characteristics | Size | 5.0inch |
| Resolution | 800(horizontal)*480(Vertical) | |
| Interface | 24bit RGB Interface | |
| Connect type | Connector | |
| Color Depth | 16.7M | |
| Technology type | a-Si | |
| Pixel pitch (mm) | 0.135 x 0.135 | |
| Pixel Configuration | R.G.B. Vertical Stripe | |
| Display Mode | Normally Black | |
| LCD Driver IC | ------ | |
| Viewing Direction | ALL View | |
| Gray Scale Inversion Direction | --- | |

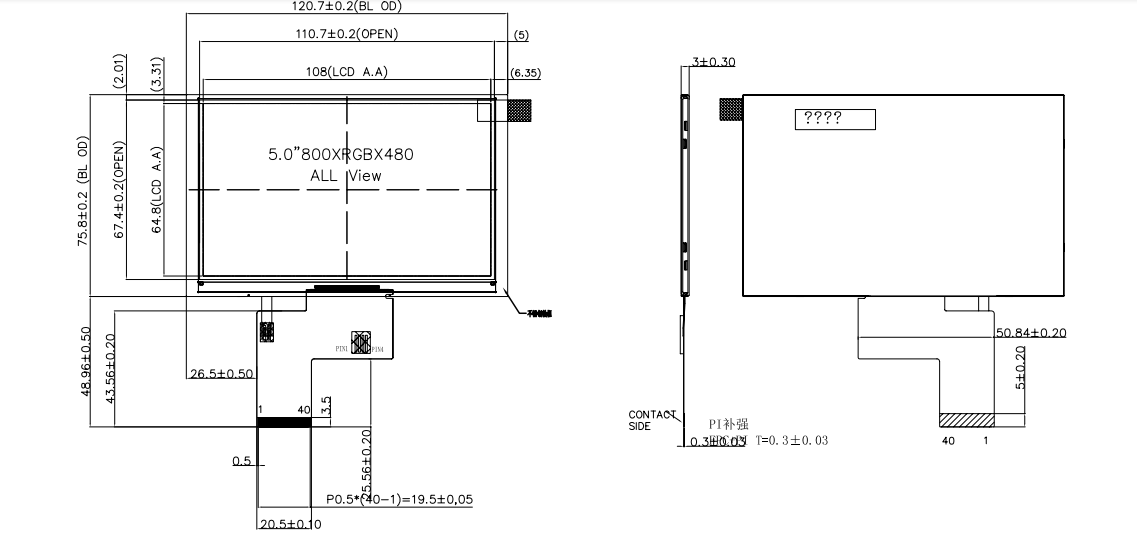

| Mechanical | LCM (W x H x D) (mm) | 120.7*75.8*3.0 |
| Active Area(mm) | 108 x 64.80 | |
| With /Without TSP | Without TSP | |
| Weight (g) | TBD | |
| LED Numbers | 12LEDs | |
