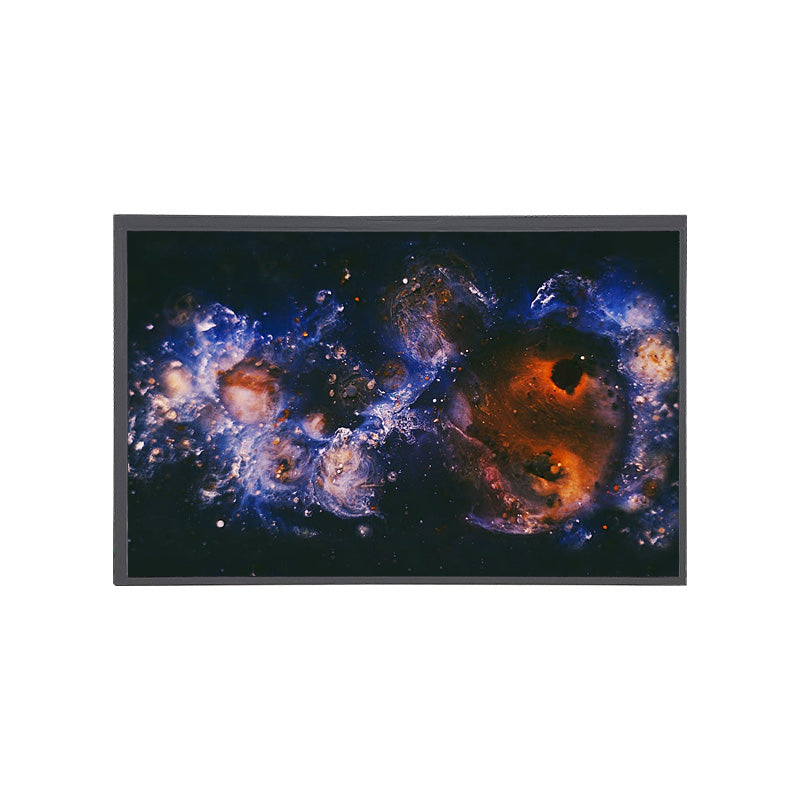

10.1 inch Standard 1024x600px MIPI Interface TFT without Touchscreen
Model: BR101JIE4250-B4 V.4
Size/Resolution: 10.1" Diagonal | 1024x600 Pixels
Display Type: Standard
Touchscreen: None
Interface: MIPI
Resource download: specification
BR101JIE4250-B4 V.4 Introduction
Correlation Parameter
| Feature | Spec | |
| Characteristics | LCD Size | 10.1 inch |
| Display Format | 1024 (RGB) X600 | |
| Interface | 4LANE MIPI | |
| Color Depth | 16.7M | |
| Technology type | a-Si | |
| Display Spec. | ||
| Display Mode | Normally White | |
| Driver IC | EK79007+EK73217 | |
| Surface Treatment | ||
| Viewing Direction | 12 O’CLOCK | |
| Gray Viewing Direction | 6 O’CLOCK | |
| Mechanical | LCM (W x H x D) (mm) | 235.0*143.0*4.5 |
| Active Area(mm) | 222.72*125.28 | |
| With /Without TSP | Without | |
| Weight (g) | TBD | |
| LED Numbers | 42 LEDs | |
Featured collection
TFT Custom Solutions
Our company offers custom-made TFT solutions, tailored to your unique display needs, ensuring high-quality, precision, and satisfaction.
Touchscreen Enhancement
Boost your device’s interactivity with our advanced touchscreen technology. We tailor the panel shape and glass thickness to your requirements, enhancing your product’s user experience.
Custom Cable Design
Steady and efficient hardware connections play a vital role in guaranteeing optimal display performance. Our bespoke cabling solutions ensure consistently stable and efficient connectivity, supporting your display unit’s essential operations.
Interface Customization
Enhance the performance of your devices with our tailored display interface solutions. We provide a variety of commonly used interfaces, including MIPI, TTL/RGB, MCU, LVDS, EDP, and SPI. We tailor these interfaces to align with your specific device requirements, ensuring optimized performance and efficiency.
Cover Glass Customization
High-quality cover glass serves to protect your display and enhance the stability and durability of your device. Selecting the appropriate glass thickness and conducting optical bonding further elevates the display quality. Our customized glass solutions ensure that your device not only looks good, but also stood the test of time.
Software/Firmware Customization
Enhance display performance with our customized software and firmware. We tailor the user interface to your device’s needs, maximizing user experience and operational efficiency.
INTELLIGENT CONTROL BOARD
Utilizes high-performance processors and advanced algorithms to achieve fast response and high-efficiency data processing capabilities. Supports various communication protocols to ensure seamless connection with external devices.
FAQ
Questions about TFT LCD screens
Are your TFT LCD Displays compliant with RoHS and Reach standards?
Yes, the TFT LCD Displays are compliant with both RoHS and Reach standards.
Can the longevity of the TFT LCD Displays be assured?
- Yes, our TFT LCD Displays are designed and tested for longevity, providing reliable performance over a long period.
What technical support do you provide after purchase?
- After the purchase, our technical team offers continuous support to troubleshoot any issues and ensure optimal performance of our TFT LCD Displays.
Can I return or exchange a TFT LCD Display if it is defective or doesn't meet my needs?
- Absolutely! We have a customer-friendly return and exchange policy in place for defective products or those that do not meet your expectations.
How can I get in touch with your support team if I face any issues with the TFT LCD Display?
- Our support team is available round-the-clock. You can contact us via email, phone, or fill out the support form on our website. We aim to respond to all inquiries within 24 hours.
