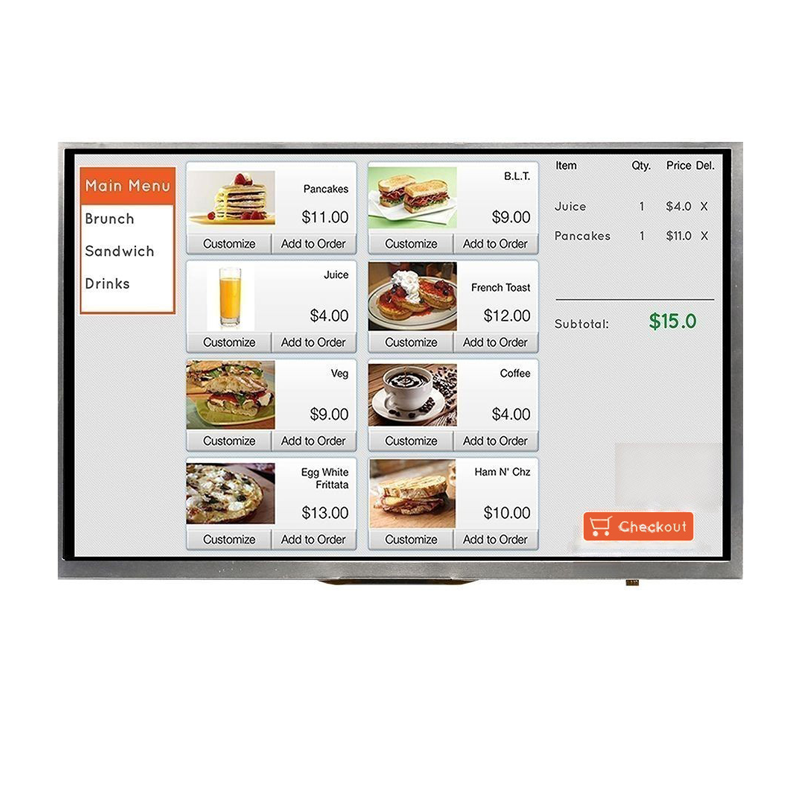

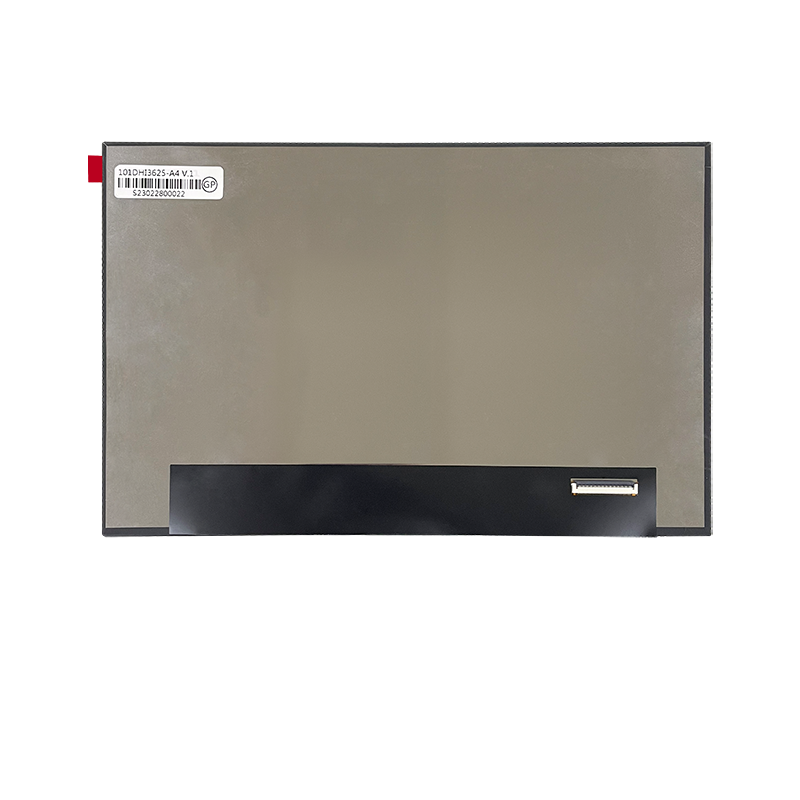

10.1 inch Standard 1024x600px LVDS Interface High brightness TFT without Touchscreen
Model: BR101JIH4250-B4 V.1
Size/Resolution: 10.1" Diagonal | 1024x600 Pixels
Display Type: Standard
Touchscreen: None
Interface: LVDS
Resource download: specification
BR101JIH4250-B4 V.1 Introduction
Correlation Parameter
| Feature | Spec | |
| Characteristics | LCD Size | 10.1 inch |
| Display Format | 1024 (RGB) X600 | |
| Interface | LVDS | |
| Color Depth | 16.7M | |
| Technology type | a-Si | |
| Display Spec. | ||
| Display Mode | Normally White | |
| Driver IC | HX8282+HX8696 | |
| Surface Treatment | ||
| Viewing Direction | 12 O’CLOCK | |
| Gray Viewing Direction | 6 O’CLOCK | |

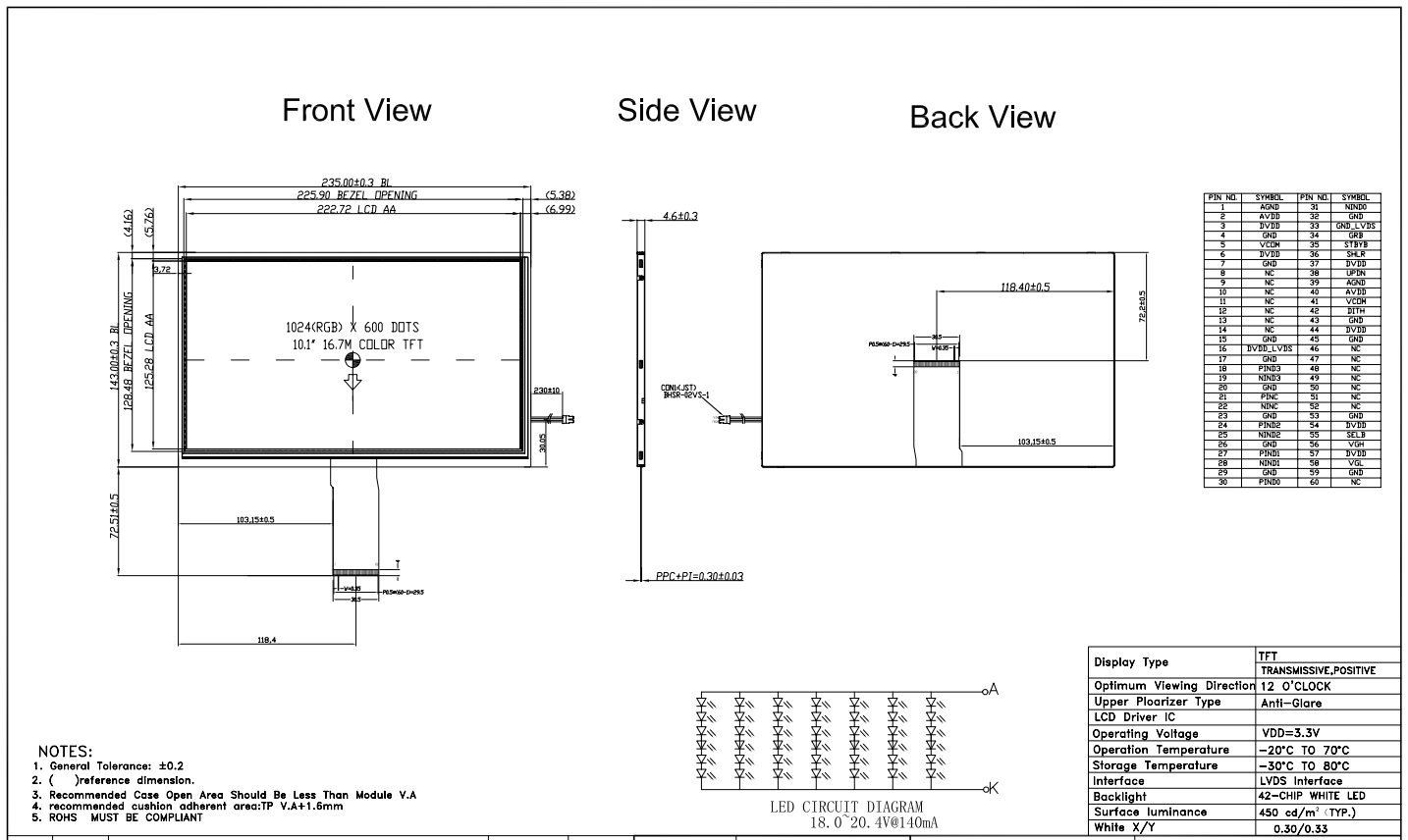

| Mechanical | LCM (W x H x D) (mm) | 235.0*143.0*4.6 |
| Active Area(mm) | 222.72*125.28 | |
| With /Without TSP | Without | |
| Weight (g) | TBD | |
| LED Numbers | 42 LEDs | |
