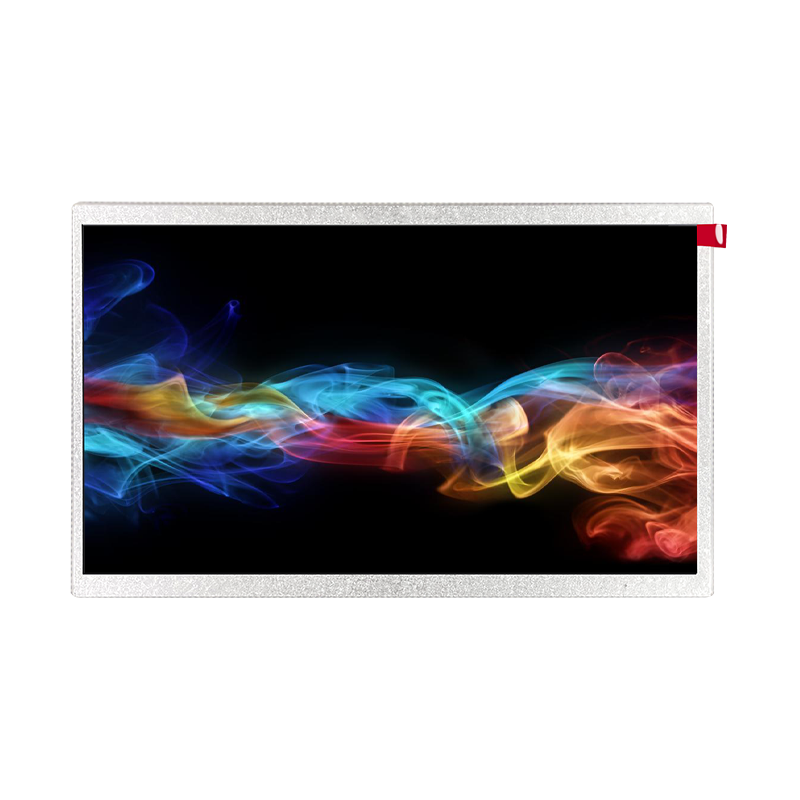

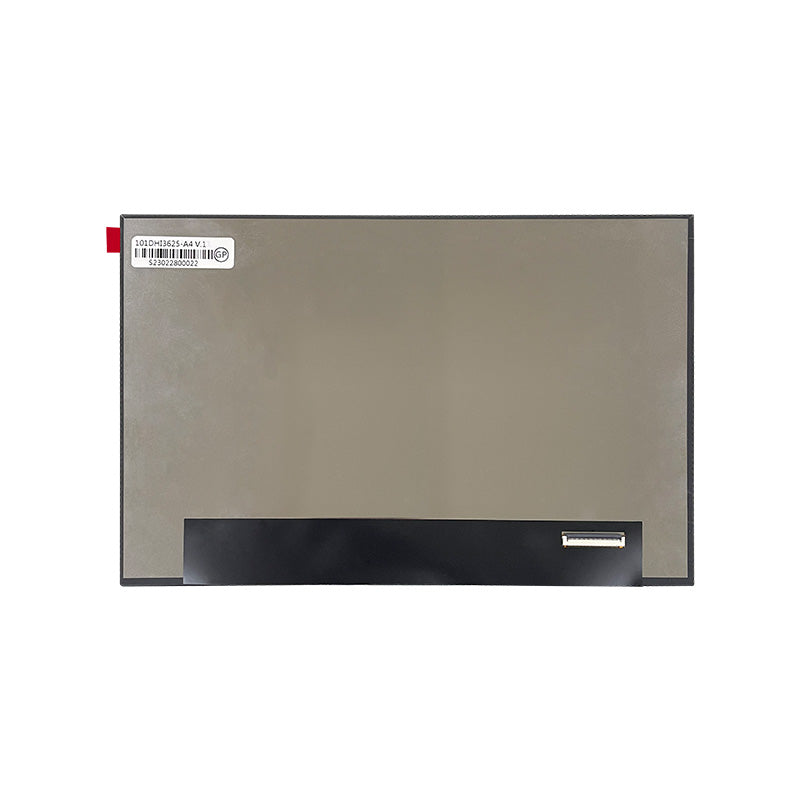

10.1 inch IPS 1280x800px LVDS Interface TFT without Touchscreen
Model: BR101DHI3625-A4 V.1
Size/Resolution: 10.1" Diagonal | 1280x800 Pixels
Display Type: Standard
Touchscreen: None
Interface: RGB
Resource download: specification
BR101DHI3625-A4 V.1 Introduction
Correlation Parameter
| Item | Specification | Unit | |

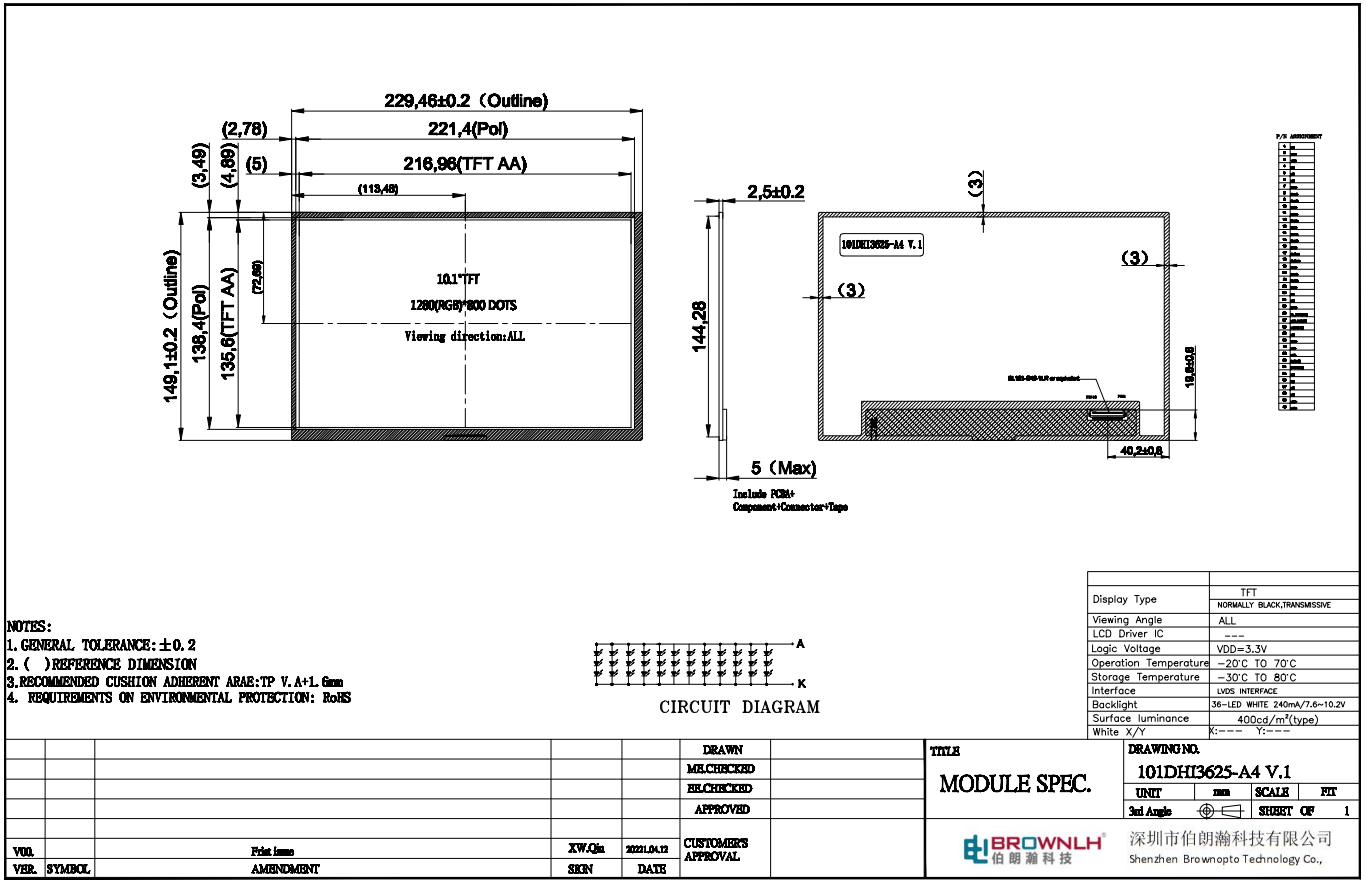

| Outline Dimension | 229.46x 149.1 x 2.5 (typ) | mm | |
| Display area | 216.96(W) x 135.60(H) | mm | |
| Number of Pixel | 1280 x RGB(H) x 800(V) | pixels | |
| Dot pitch | 0.1695(W) x 0.1695(H) | mm | |
| Pixel arrangement | RGB Vertical stripe | ||
| Display mode | Normally Black | ||
| Surface treatment | Antiglare | ||
| Weight | 160 | G | |
| Back-light | Single LED (Side-Light type) | ||
| Power | B/L System | 2.3 | W |
| Consumption | TFT Panel | 1.3 | W |
